Professional Printing Cylinder Manufacturing - Precision and Durability for Your Printing
In the world of high-volume printing, where quality, repeatability and productivity are key, rotogravure cylinders Are the foundation of success. Our company, known for its reputation and comprehensive offerings in the printing industry, uses only the best raw materials and equipment from reputable suppliers.
As an experienced manufacturer, we offer comprehensive services for production of rotogravure cylinders, providing tools that guarantee unparalleled precision and durability. Our track record of quality and precision of manufactured cylinders confirms the company's high position in the market.
Each cylinder is manufactured taking into account the individual needs of the customer, the parameters of the machines and the specifics of production. Our gravure rollers are designed and manufactured for the most demanding applications in the packaging, decorative and publishing industries. We understand that every micrometer matters, which is why our manufacturing process, from the creation of a solid base to the final engraving and chrome plating, is rigorously inspected at every stage.
Trust our experience and technology to make your products stand out with excellent print quality.
Product catalog
Our cylinders for inset printing are:
We design our gravure cylinders for maximum performance and reliability. Here's what sets us apart:
Comprehensive Manufacturing Service: We provide the full production cycle in one place - from making the steel cylinder base, to precision copper plating and engraving, to protective chrome plating and secure packaging. This gives you full control over quality and on-time delivery.
Highest Precision Engraving: We use advanced engraving techniques that allow us to accurately reproduce the finest details of the design. Cell geometry and depth are precisely controlled, ensuring excellent ink transfer and color consistency even in the longest runs. A precisely matched cylinder is key to achieving high print quality.
Exceptional Durability and Longevity: We coat each cylinder with a hard, perfectly smooth layer of chrome. It protects the delicate engraving from mechanical and chemical wear, minimizing downtime and guaranteeing consistent print quality through millions of prints. Regular maintenance and inspection of the cylinder's condition are necessary to maintain its longevity.
Safe Delivery Guarantee: We understand how valuable and precise the finished cylinder is. That's why we use specialized, dedicated packaging to protect it from mechanical damage during transport and storage.
Industries we help
Our rotogravure cylinders They are used in many industries where the highest quality and visual effect are important. Each cylinder is manufactured with the specifics of the industry in mind, taking into account individual requirements and production parameters. The company has carried out projects for various industry sectors, which confirms our experience and flexibility in customizing solutions. The main market segments are:
● Flexible Packaging:
Production of high-quality films and laminates for the food, pharmaceutical, cosmetics and tobacco industries.
● Publication Printing:
Realization of high-volume magazines, catalogs and advertising materials, where color consistency is a priority.
● Decorative Printing:
Creating patterns on wallpaper, furniture veneers, floor panels and decorative papers.
● Security Printing:
Applications requiring micro-text, intricate designs and other elements difficult to forge, used on banknotes, labels or securities.

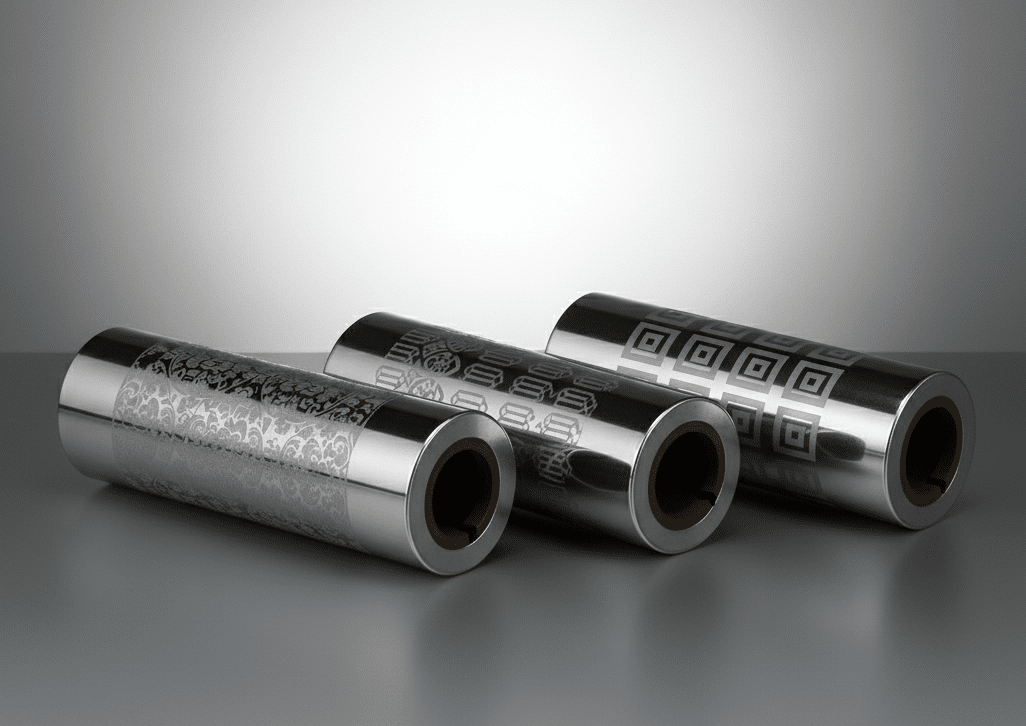

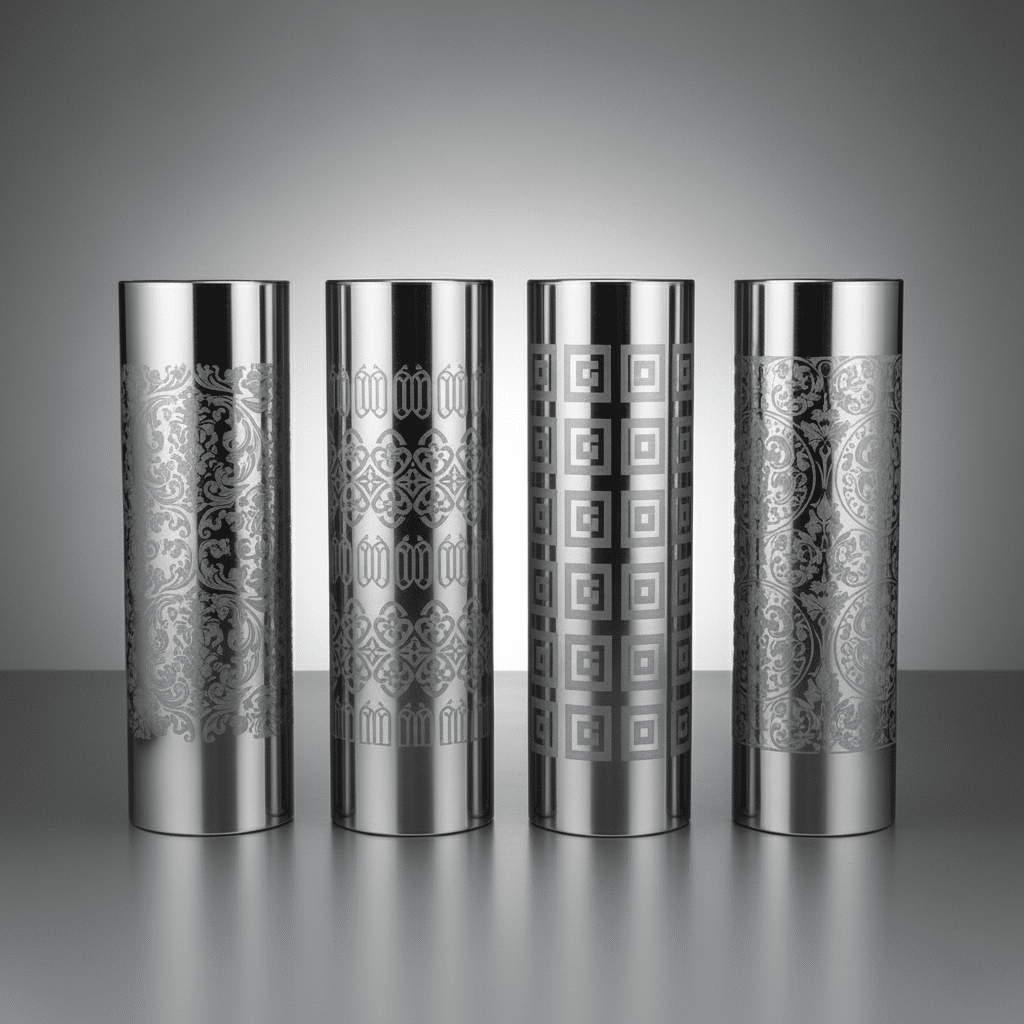

Rotogravure printing cylinder manufacturing process.
Cylinders for rotogravure (also known as gravure rollers) are the heart of gravure printing technology. This technology is used both in rotogravure printing and in other advanced printing processes. It is irreplaceable in mass production, where the initial investment in the cylinder amortizes thanks to its remarkable durability and performance.
Our process production of rotogravure cylinders has been optimized to deliver a superior product, ready to work in the most demanding conditions. Each cylinder is manufactured taking into account the specifics of the project and the parameters of the printing machine it will work with. We carry out a variety of projects for customers in different industries.
Stage 1: Creating the Cylinder Base
It all starts with a solid foundation. The base of the cylinder, usually made of high-quality steel, must have perfect geometry and balance. For its production, specialized machines are used to ensure precise cutting and processing of the material. It is responsible for stability during operation in the printing machine, which reaches very high speeds. Precision manufacturing of the body is key to avoiding vibration and ensuring even pressure across the width of the printed material. Regular maintenance of the parts of these machines is essential for process reliability.
Stage 2: Galvanic Copper Plating
It all starts with a solid foundation. The base of the cylinder, usually made of high-quality steel, must have perfect geometry and balance. For its production, specialized machines are used to ensure precise cutting and processing of the material. It is responsible for stability during operation in the printing machine, which reaches very high speeds. Precision manufacturing of the body is key to avoiding vibration and ensuring even pressure across the width of the printed material. Regular maintenance of the parts of these machines is essential for process reliability.
Step 3: Engraving the Design
This is the key moment when the cylinder becomes a unique printing form. Using advanced engraving technologies, a grid of millions of cells is created on the copper surface. Their shape, depth and density determine the amount of ink transferred and, consequently, the tonal qualities and color intensity of the final print. Precision at this stage defines the sharpness of details, smoothness of tonal transitions and overall quality of reproduction. Our specialists will help select the right cylinder parameters to ensure optimal results depending on the project and the requirements of the printing machine.
Step 4: Protective Chrome Plating
To protect the precise but delicate engraving on the copper, the cylinder is coated with a thin but extremely hard layer of chrome. Chrome plating not only protects against abrasion caused by the racket and contact with the substrate, but also provides excellent anti-corrosion properties and facilitates the transfer of ink from the cells. Thanks to this layer, gravure rollers can run without loss of quality for a very long time, making rotogravure an economical choice for large print runs. Cylinder-to-cylinder interaction in a printing press requires the highest level of manufacturing precision.
Stage 5: Final Inspection and Packaging
Each finished cylinder undergoes rigorous quality control, including verification of dimensions, surface quality and correctness of engraving. If irregularities are detected during the inspection, appropriate corrective action is taken. After passing the tests, the cylinder is carefully protected and packed in dedicated shipping crates so that it reaches the customer intact.
Cylinders for rotogravure (also known as gravure rollers) are the heart of gravure printing technology. This technology is used both in rotogravure printing and in other advanced printing processes. It is irreplaceable in mass production, where the initial investment in the cylinder amortizes thanks to its remarkable durability and performance.
Our process production of rotogravure cylinders has been optimized to deliver a superior product, ready to work in the most demanding conditions. Each cylinder is manufactured taking into account the specifics of the project and the parameters of the printing machine it will work with. We carry out a variety of projects for customers in different industries.
Opinions of Our Customers
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Q&A- frequently asked questions about inset cylinders
What is a rotogravure cylinder?
It is a key component of gravure printing technology, designed for mass production of prints with very high quality, repeatability and durability.
What stages does the production of rotogravure cylinders consist of?
The manufacturing process involves the creation of a steel base, electroplating it with copper, followed by precise engraving of the design, then the application of a protective layer of chrome, and final quality control and secure packaging.
What materials are gravure rollers made of?
The base of the cylinder is usually made of high-grade steel, the layer for engraving is copper, and the surface is protected by a hard chrome coating.
For what purpose is a layer of chrome applied to the cylinder?
A layer of chrome protects the precise but delicate engraving on the copper from abrasion and mechanical wear, ensuring its exceptional durability and consistent print quality over millions of prints.
What industries use rotogravure cylinders?
They are used in the production of flexible packaging (for food, pharmaceuticals), decorative printing (wallpaper, furniture veneers), publication printing (magazines, catalogs) and security printing (such as labels).
Do you offer a comprehensive cylinder manufacturing service?
Yes, we provide the full production cycle in one place - from making the steel base, through copper plating and engraving, to final chrome plating and secure packaging of the finished product. Our specialists will help you choose the right production solutions.
Can cylinders be customized for specific printing presses?
Yes, our production is fully flexible and adaptable to the individual technical requirements of the customer and the parameters of their printing machines. The cylinders we produce are compatible with any cylinder used in modern printing machines
How are the cylinders protected during transportation?
Each finished cylinder is carefully protected and packed in dedicated transport boxes to protect it from mechanical damage.
What are the delivery options in Poland?
We arrange shipping throughout the country. Contact us to discuss details and available courier options.
Still have questions?
Contact our department. We will respond within 24 hours
Maintenance and Upkeep of Rotogravure Cylinders
Proper maintenance of gravure printing cylinders is the basis for maintaining their high quality and reliability in daily operation. Regular cleaning of the cylinder surface effectively removes excess ink, which could lead to the formation of undesirable ceramic coatings and reduce the quality of rotogravure printing. In practice, specialized sets of tools are used for this, which allow precise and safe cleaning of even the finest elements of the engraving. In addition, proper cylinder maintenance also includes inspection of the surface condition and regular technical inspections, which allows early detection of possible damage and prevents costly production downtime. No less important is the proper storage of the cylinders - protecting them from moisture, dust and mechanical damage ensures that the highest printing quality is maintained throughout their lifetime. Thanks to these measures, rotogravure printing cylinders retain their properties and ensure consistently high print quality for a long time.
Performance and Flexibility in Industrial Applications
Today's printing industry is placing ever higher demands on rotogravure technology in terms of productivity and flexibility. Rotogravure cylinders, thanks to their advanced design, make it possible to transfer ink precisely to a variety of substrates - from paper to film to specialized packaging materials. Their versatility makes them compatible with many types of machines and production lines, allowing them to be widely used in various industries. High-quality gravure cylinder, made with modern materials such as copper and ceramic, guarantees not only the stability of the printing process, but also resistance to intensive use and variable production conditions. This makes it possible to achieve excellent printing results even with large print runs and on demanding substrates. Flexibility in the selection of cylinder parameters and the ability to adapt it to the specifics of a given project make rotogravure technology irreplaceable where quality, repeatability and production efficiency matter.
